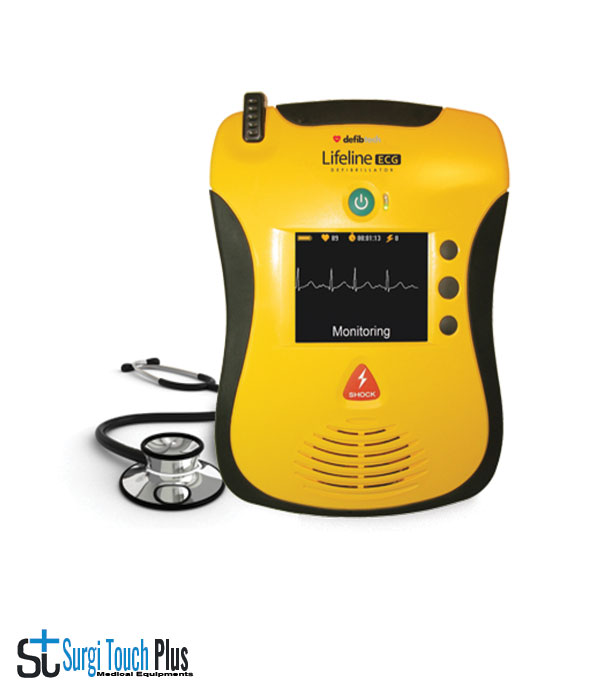

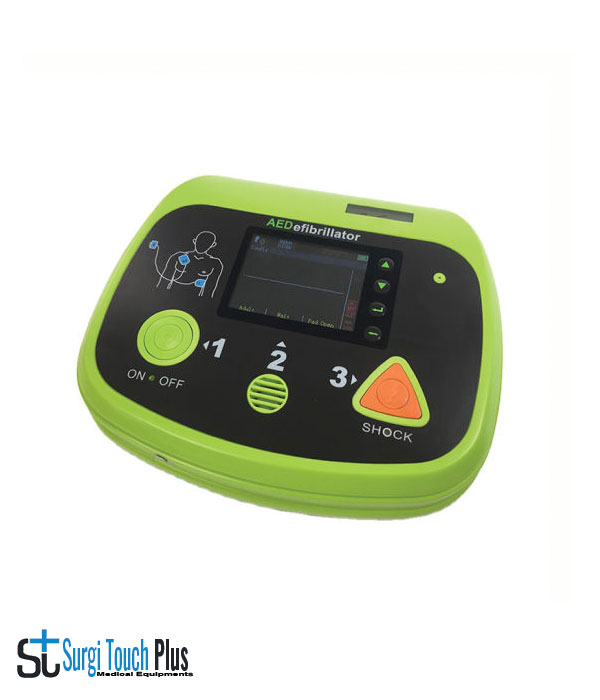

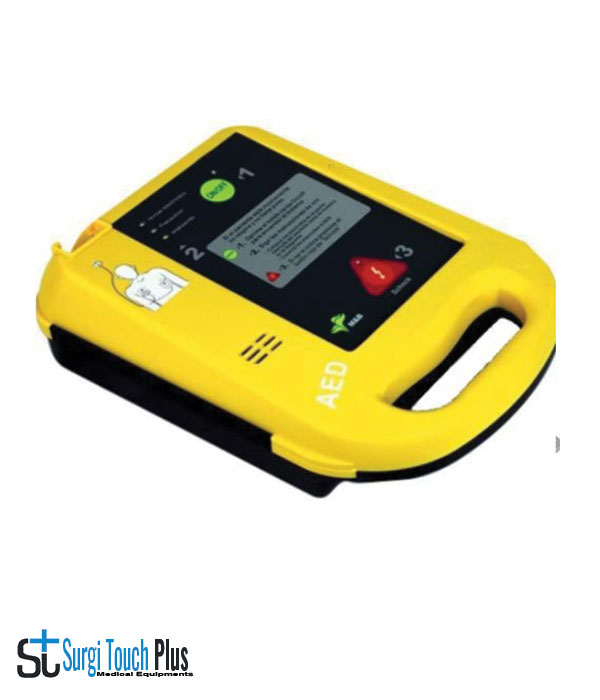

Automatic External Defibrillator

Description

Features:
– Three-step defibrillation process
– Two-button operation
– Extensive voice and visual prompts for the operator
– Biphasic energy output
– 3.5 inch LCD display

Technical Specifications:
– Output: Biphasic Truncated exponential
– Energy Sequence(adult ):
150/150/200(Default)
150/200/200
200/200/200
– Energy Sequence(Pediatric):
50/70/85(Default)
70/70/85
70/85/85
85/85/85
– Charge Time: 10 sec. to 200 J
– Analysis Time: 9 sec.
– The maximum time from the initiation of rhythm analysis to readiness for maximum Energy discharge after 15 shocks: Less than 30 seconds
– The maximum time from initially switching power on to readiness for maximum Energy discharge after 15 shocks: Less than 35seconds
– Audible Prompts: 19 audible prompts
– Visual Prompts: LCD
– Controls: six buttons – On/Off, Shock, and 4 software-configurable buttons
– Output Energy Accuracy: ±15% into any impedance from 25 to 175Ω
– The Maximum Voltage: 1800±20V
– Output disabled when the PATIENT impedance is outside limits: 20Ω to 200Ω
– Recovery of the ECG input after defibrillation: <10s
